IEC 61851-1IEC 62196-2CE MarkingIP54 RatedISO 9001:2015
AC

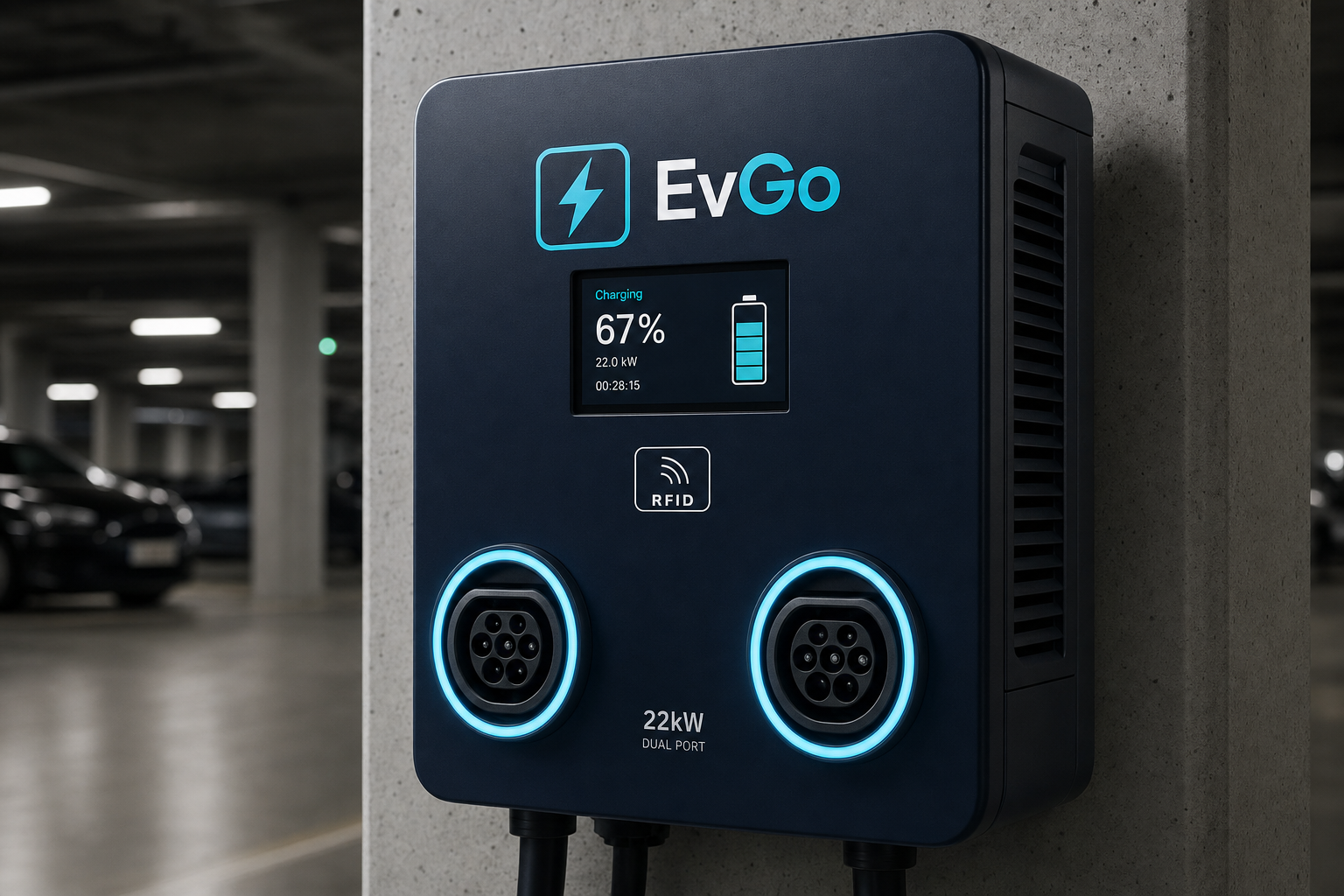

EvGo AC Flex 22kW
High-Power AC for Commercial Parking
The EvGo AC Flex 22kW delivers three-phase charging performance for commercial car parks, hotels, and office buildings. Its modular design allows easy capacity upgrades and fleet management integration via OCPP 2.0.1.
Output Power
22 kW
Connector Type
Type 2 (IEC 62196)
Protection Rating
IP54 / IK10
Warranty
5 Years
Features & Benefits
- Dual-port for simultaneous vehicle charging
- OCPP 2.0.1 backend integration for fleet management
- Dynamic load management across circuits
- Revenue-grade energy metering (MID certified)
- Stainless steel brushed finish for durability
- Meets UAE grid interconnection requirements
Full Specifications
| Max Output Power | 22 kW |
| Input Voltage | 400V AC, Three Phase |
| Connector | Type 2 (IEC 62196-2) |
| Number of Ports | 1 or 2 (configurable) |
| Protection Rating | IP54 |
| Impact Resistance | IK10 |
| Operating Temp | -25°C to +55°C |
| Connectivity | 4G LTE, Wi-Fi, OCPP 2.0.1 |
| Payment | RFID, Credit Card, QR Code |
| Dimensions | 420 × 220 × 120 mm |
