IEC 61851-23IEC 62196-3CE MarkingIP55 / IK10 RatedISO 9001:2015UN ECE R100
ULTRA FAST

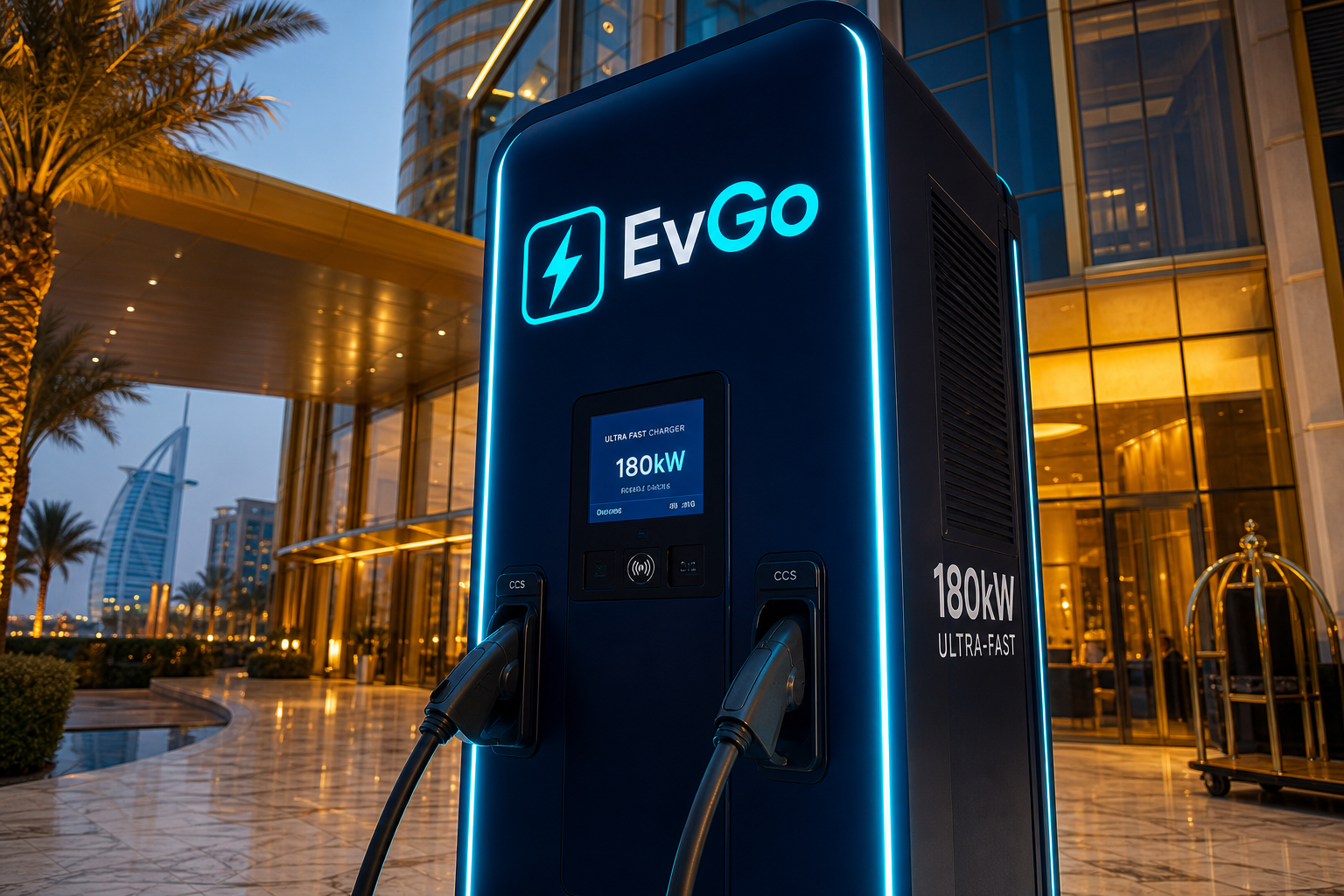

EvGo Ultra 180kW
Premium Ultra-Fast Charging Station
The EvGo Ultra 180kW redefines fast charging in the UAE. Designed for premier highway rest stops and flagship commercial developments, it delivers up to 180kW of pure DC power — fully charged in under 20 minutes for most electric vehicles.
Output Power
180 kW
Connector Type
CCS2 (×2)
Protection Rating
IP55 / IK10
Warranty
5 Years
Features & Benefits
- Under 20-minute charge for 300km range (vehicle-dependent)
- Advanced liquid-cooled cable for minimal heat and maximum convenience
- V2G (Vehicle-to-Grid) ready architecture
- 15.6" 4K interactive display with multi-language UI
- Integrated anti-theft cable management
- Modular power electronics for field upgrades
Full Specifications
| Max Output Power | 180 kW |
| Output per Port | Up to 180kW single / 90kW split |
| Output Voltage | 200–1000V DC |
| Output Current | Up to 500A |
| Efficiency | ≥ 96.5% |
| Protection Rating | IP55 / IK10 |
| Operating Temp | -40°C to +65°C |
| Cooling | Advanced Liquid Cooling System |
| Display | 15.6" 4K Touch Display |
| Connectivity | 5G / 4G LTE + Ethernet, OCPP 2.0.1 |
